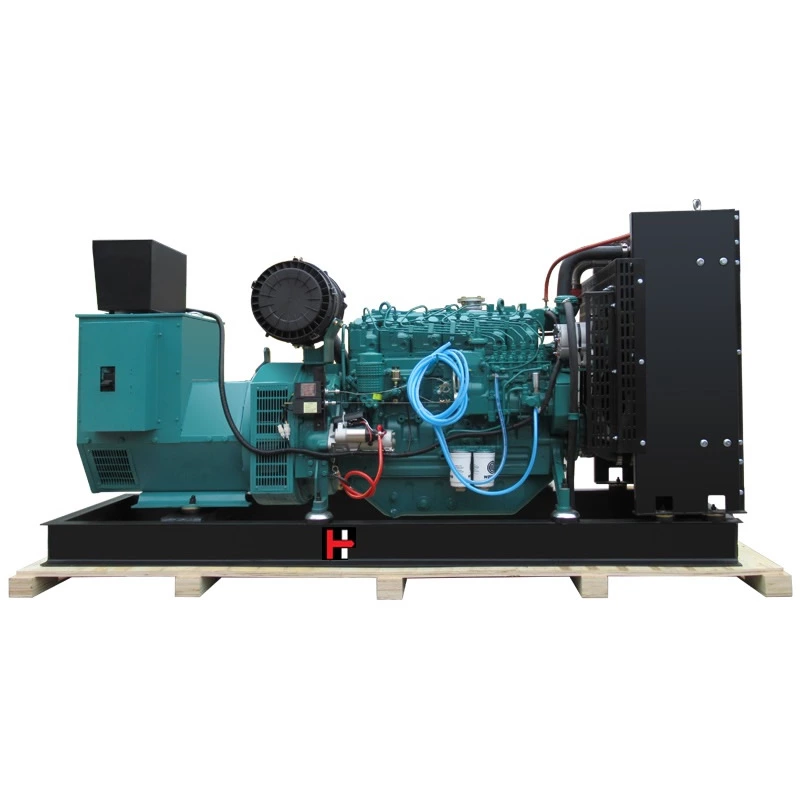

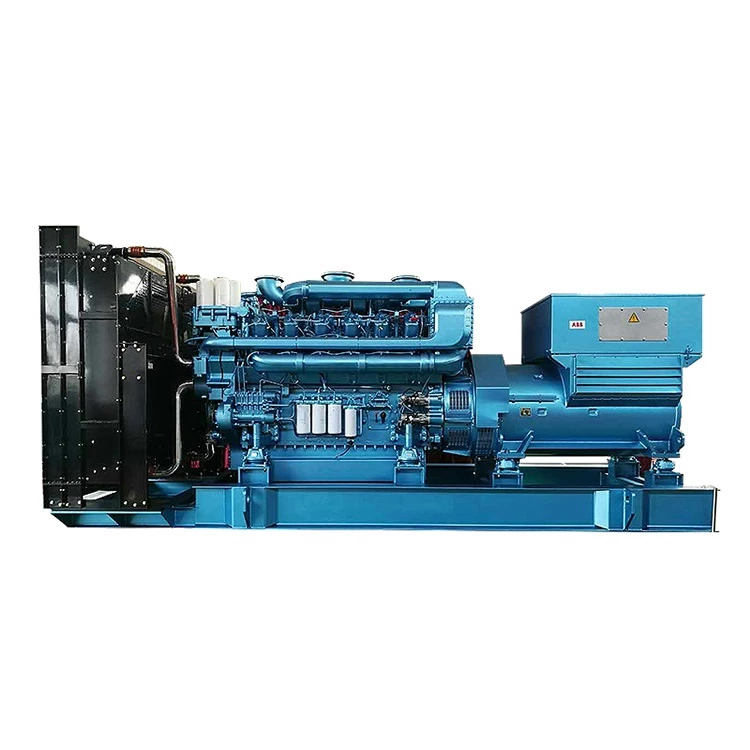

Weichai Series Generator Set
- Output Power
- 10KW-600KW
- Engine
- Weichai
- Alternator
- Stamford/Marathon
- Frequency
- 50HZ/60HZ
- Type
- Diesle Genset
- Controller
- Deepsea/Smartgen
Weichai Diesel Generator Set For Sale
Genset Main Technical Data
- Genset Model: BF-W8GF TO BF- W200GF
- Frequency:50hz/60hz
- Speed: 1500/1800rpm
- Voltage: 220v-600v
- Phase: Three phase four wires
- TYPE: Open/Silent
- Fuel type: iesel
- Air Intake System: Turbo, Water/Air Cooling
- Start Control: Electric
- Rated Power Factor: COSΦ=0.8
- Voltage Regulation : ≥±5
- Voltage Regulation, Stead State: ≤±1
Standard Features
- Control System
- Battery Charger
- Generator
- Starting batteries( Maintenance-Free &Watering-Free) with connective wires
- Oil Drain Valve
- Exhaust System( including until muffler)
Genset optional parts
- Water Separator
- Engine Heater
- Daily Fuel Tank
- Rainproof Type
- Remote Control Panel
- Alternator Heater
- Soundproof Type
- Paralleling System
- Spare Parts
- Trailer Type
- Switch box
- Automatic Transfer Switch
| Model-NO | Prime Power | Engine Model | cylinder | Displacement | Fuel consumption | Dimension | Weight | |
| KW | KVA | (L) | (g/kw.h) | L *W*H (mm) | (kg) | |||
| BF-W8G | 8 | 10 | K4100D | 4 | 3.61 | 248 | 1730×790×1310 | 450 |
| BF-W10GF | 10 | 12.5 | K4100D | 4 | 3.61 | 248 | 1730×790×1310 | 450 |
| BF-W12GF | 12 | 15 | K4100D | 4 | 3.61 | 248 | 1730×790×1310 | 450 |
| BF-W15GF | 15 | 18.75 | K4100D | 4 | 3.61 | 248 | 1730×790×1310 | 450 |
| BF-20GF | 20 | 25 | K4100D | 4 | 3.61 | 248 | 1730×790×1310 | 600 |
| BF-24GF | 24 | 30 | K4100D | 4 | 3.61 | 248 | 1730×790×1310 | 600 |
| BF-30GF | 30 | 37.5 | K4100D | 4 | 3.61 | 248 | 1730×790×1310 | 600 |
| BF-W40GF | 40 | 50 | K4100ZD | 4 | 3.61 | 238 | 1900×800×1400 | 650 |
| BF-W50GF | 50 | 62.5 | R4105ZD | 4 | 4.33 | 238 | 1900×800×1400 | 700 |
| BF-W64GF | 64 | 80 | R6105ZD | 6 | 6.49 | 238 | 2320×930×1730 | 1600 |
| BF-W75GF | 75 | 93.7 | R6105ZD | 6 | 6.49 | 238 | 2320×930×1730 | 1600 |
| BF-W100GF | 100 | 125 | R6105AZLD | 6 | 6.75 | 238 | 2450×930×1730 | 1700 |
| BF-W120GF | 120 | 150 | R6105IZLD | 6 | 7.01 | 238 | 2450×930×1730 | 1700 |
| BF-W150GF | 150 | 187.5 | 6113ZLD | 6 | 7.522 | 232 | 2450×930×1730 | 1800 |
| BF-W200GF | 200 | 250 | HF6120IZLD | 6 | 7.522 | 220 | 2830×860×1500 | 1950 |
