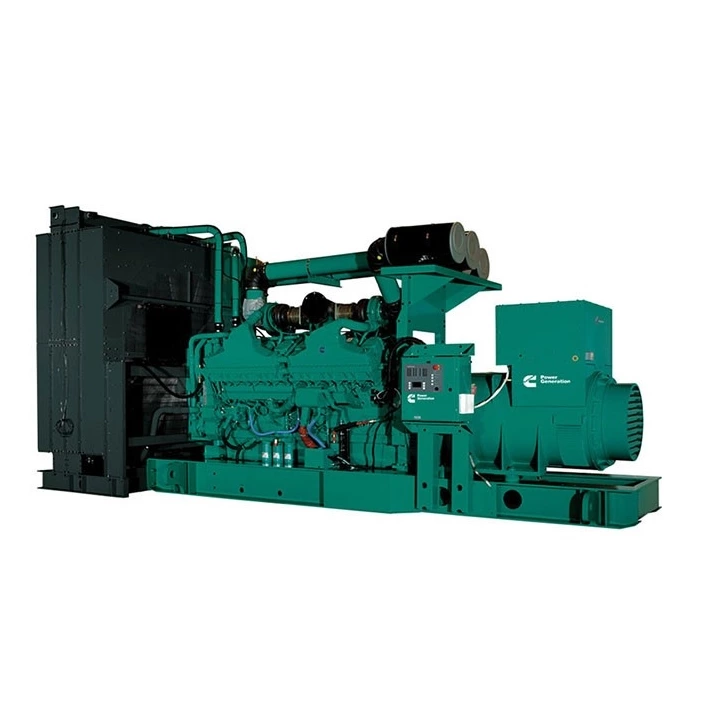

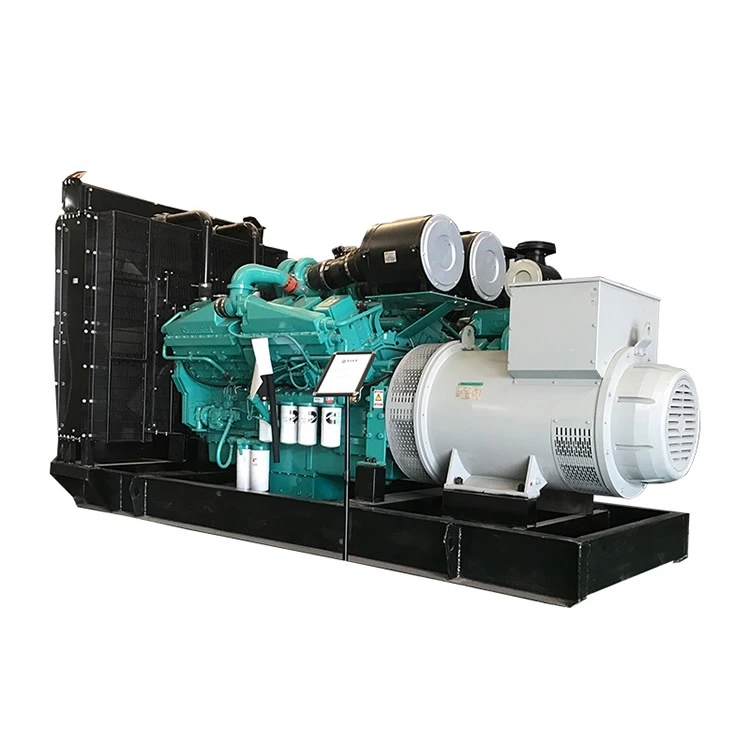

Cummins Series Generator Set
- Output Power
- 20KW-2200KW
- Engine
- Cummins
- Alternator
- Stamford/Marathon
- Frequency
- 50HZ/60HZ
- Type
- Diesle Genset
- Controller
- Deepsea/Smartgen
Cummins Diesel Generator Set For Sale
Genset Main Technical Data
- Genset Model: BF-C20 TO BF-C1500
- Frequency:50hz/60hz
- Speed: 1500/1800rpm
- Voltage: 220v-600v
- Phase: Three phase four wires
- TYPE: Open/Silent
- Fuel type: iesel
- Air Intake System: Turbo, Water/Air Cooling
- Start Control: Electric
- Rated Power Factor: COSΦ=0.8
- Voltage Regulation : ≥±5
- Voltage Regulation, Stead State: ≤±1
Standard Features
- Control System
- Battery Charger
- Generator
- Starting batteries( Maintenance-Free &Watering-Free) with connective wires
- Oil Drain Valve
- Exhaust System( including until muffler)
Genset optional parts
- Water Separator
- Engine Heater
- Daily Fuel Tank
- Rainproof Type
- Remote Control Panel
- Alternator Heater
- Soundproof Type
- Paralleling System
- Spare Parts
- Trailer Type
- Switch box
- Automatic Transfer Switch
| Model-NO | Prime Power | Engine Model | cylinder | Displacement | Fuel consumption | Dimension | Weight | |
| KW | KVA | (L) | (g/kw.h) | L *W*H (mm) | (kg) | |||
| BF-C15 | 15 | 17.75 | 4B3.9-G1 | 4 | 3.9 | ≤209 | 1700×720×1200 | 900 |
| BF-C20 | 20 | 25 | 4B3.9-G1 | 4 | 3.9 | ≤209 | 1700×720×1200 | 900 |
| BF-C24 | 24 | 30 | 4B3.9-G1 | 4 | 3.9 | ≤209 | 1700×720×1200 | 900 |
| BF-C30 | 30 | 37.5 | 4BT3.9-G1 | 4 | 3.9 | ≤210 | 1800×720×1200 | 920 |
| BF-C40 | 40 | 50 | 4BT3.9-G2 | 4 | 3.9 | ≤210 | 1800×720×1200 | 920 |
| BF-C50 | 50 | 62.5 | 4BTA3.9-G2 | 4 | 3.9 | ≤210 | 1800×720×1200 | 920 |
| BF-C65 | 65 | 81.25 | 6BT5.9-G1 | 6 | 5.9 | ≤206 | 2200×800×1300 | 1180 |
| BF-C75 | 75 | 93.75 | 6BT5.9-G1 | 6 | 5.9 | ≤206 | 2200×800×1300 | 1180 |
| BF-C90 | 90 | 112.5 | 6BT5.9-G1 | 6 | 5.9 | ≤206 | 2200×800×1300 | 1180 |
| BF-C100 | 100 | 120 | 6BTA5.9-G2 | 6 | 5.9 | ≤207 | 2250×830×1350 | 1200 |
| BF-C120 | 120 | 150 | 6BTAA5.9-G2 | 6 | 5.9 | ≤209 | 2250×830×1350 | 1350 |
| BF-C150 | 150 | 187.5 | 6CTA8.3-G2 | 6 | 8.3 | ≤209 | 2500×860×1500 | 2200 |
| BF-C160 | 160 | 200 | 6CTAA8.3-G2 | 6 | 8.3 | ≤209 | 2500×860×1500 | 2500 |
| BF-C200 | 200 | 250 | 6LTAA8.3-G2 | 6 | 8.3 | ≤209 | 2600×880×1500 | 2500 |
| BF-C250 | 250 | 312.5 | NTA855-G1A | 6 | 14 | ≤206 | 3100×980×1760 | 2900 |
| BF-C275 | 275 | 343.7 | NTA855-G2A | 6L | 14 | 206 | 3100×1000×1700 | 2600 |
| BF-C300 | 300 | 375 | NTAA855-G7 | 6L | 14 | 204 | 3400×1280×1800 | 3050 |
| BF-C320 | 320 | 400 | NTAA855-G7A | 6L | 14 | 204 | 3400×1280×1800 | 3050 |
| BF-C360 | 360 | 450 | KTA19-G3 | 6L | 18.9 | 203.8 | 3300×1350×2000 | 3600 |
| BF-C400 | 400 | 500 | KTA19-G3A | 6L | 18.9 | 203.8 | 3420×1250×1930 | 3720 |
| BF-C420 | 420 | 525 | KTAA19-G5 | 6L | 18.9 | 206 | 3550×1550×2100 | 4000 |
| BF-C500 | 500 | 625 | KTAA19-G6A | 6L | 18.9 | 203.8 | 3550×1550×2100 | 4400 |
| BF-C600 | 600 | 725 | KTA38-G2 | 12V | 37.8 | 206 | 4260×1650×2350 | 6350 |
| BF-C640 | 640 | 800 | KTA38-G2B | 12V | 37.8 | 206 | 4260×1650×2350 | 6350 |
| BF-C720 | 720 | 900 | KTA38-G2A | 12V | 37.8 | 210 | 4350×1650×2350 | 6650 |
| BF-C800 | 800 | 1000 | KTA38-G5 | 12V | 37.8 | 201 | 4500×1850×2350 | 6900 |
| BF-C900 | 900 | 1125 | KTA38-G9 | 12V | 37.8 | 201 | 4500×2100×2500 | 7500 |
| BF-C1000 | 1000 | 1250 | KTA50-G3 | 16V | 50.3 | 202 | 5100×2280×2500 | 9600 |
| BF-C1100 | 1120 | 1400 | KTA50-G8 | 16V | 50.3 | 204 | 5100×2280×2500 | 13000 |
| BF-C1200 | 1200 | 1500 | KTA50-GS8 | 16V | 50.3 | 204 | 5100×2280×2500 | 13000 |
